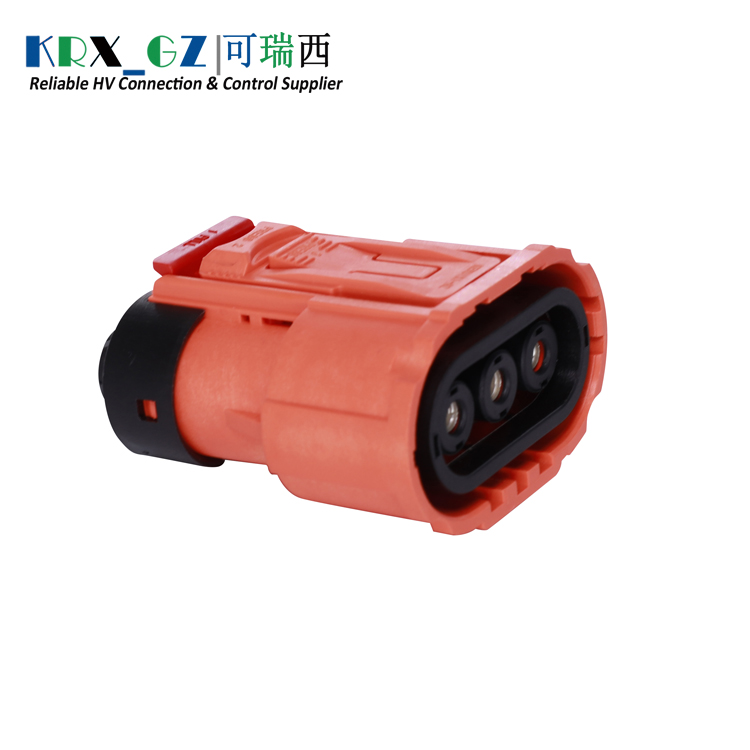

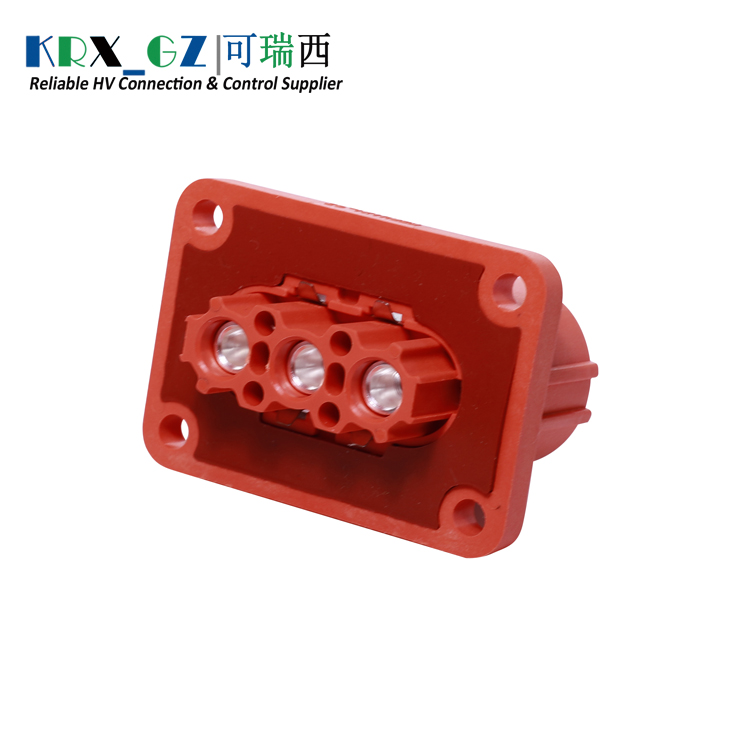

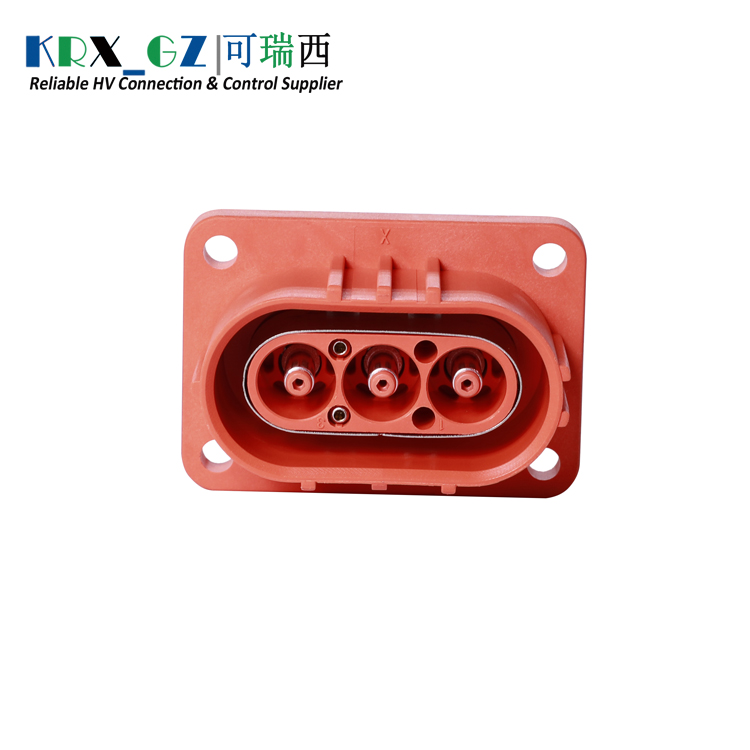

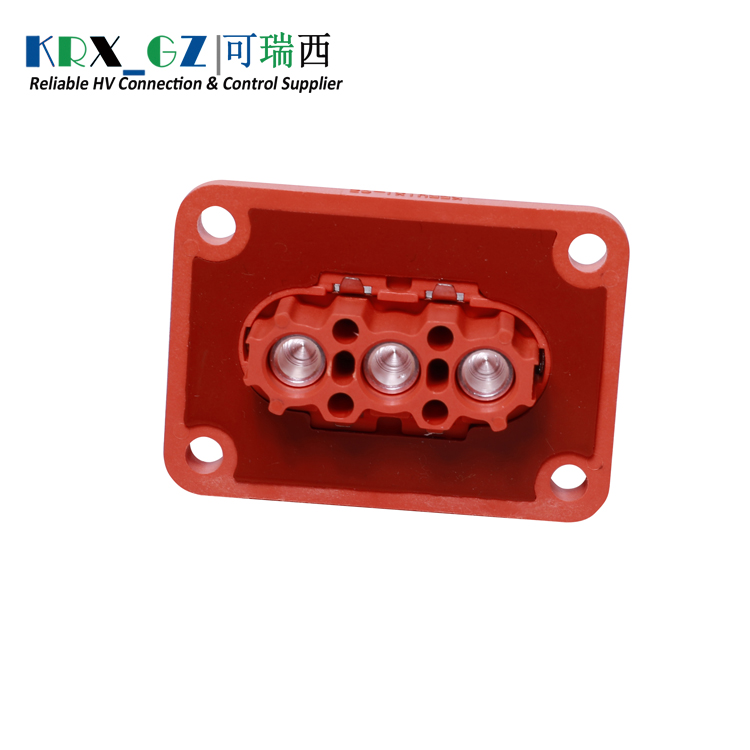

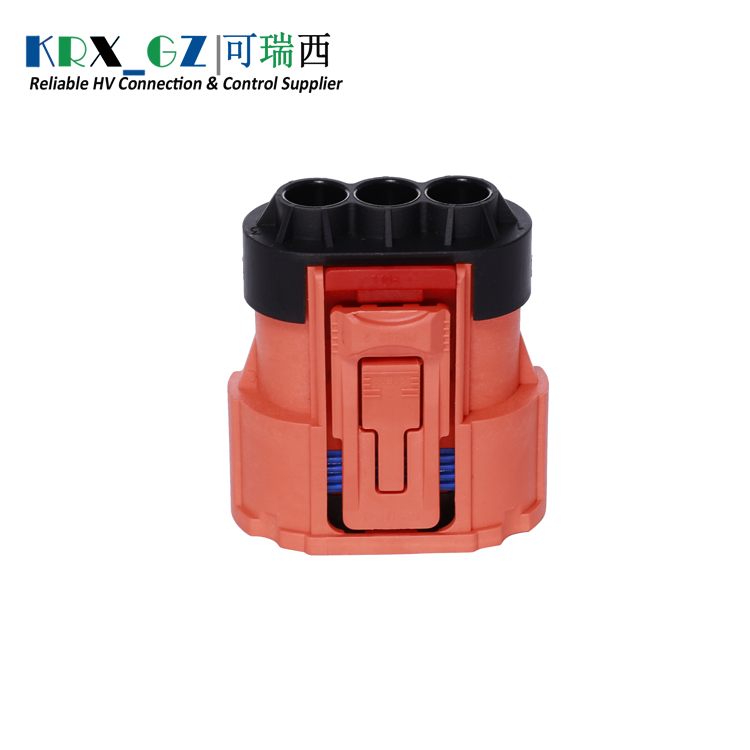

KRX18-500 Straight Plug_2D drawing
Gerneral Information
Connector Type: | Female Socket | Orientation: | Straight |
Positions: | 3 Pin | Shell Material: | Engineering Plastics |
| MOQ Limited: | 1 pc | Key: | X , Y , U , V |
Rate Current: | 20A/25A/35A/60A | Rated Voltage: | 1500V |
Mounting Type: | Terminal Crimp | Ingress Protection: | IP67 |
Shield： | Yes | HVIL: | Intergrated |
Salt Spray: | 48 Hours | Temperature Range: | -40°C ~ 125°C |
Mechanical Life: | 500 Times | Insulation Resistance: | 1000MΩ |
Wire Range: | 2.5 mm² /4.0 mm² /6.0 mm² /10.0 mm² |
Features & Benefits
Wide cable ranges
IP67 Ingress Protection
Multiple coding options
HVIL: integrated, internal
360° shielded connection
No tool required to unmate
Compact design & low weight
Quick Lock and Press-to-Release Design
Latch locking which more convenient and fast
High current load at high ambient temperatures
Excellent Key Technologies
Our advantage
Safety Consideration
KRX's touch-safe technology is designed to protect individuals handling high-voltage connectors. In addition, greater creepage and clearance distances between conductive materials can lead to higher voltage levels.
Outstanding Conductivity
We utilize an advanced antioxidant treatment and meticulously choose premium raw materials to ensure our product delivers superior conductivity, enabling faster and more reliable signal transmission.
Compact & Sealing Design
We designed it to be compact, saving space with light weight. Robust sealing technologies can prevent the ingress of moisture, dust, and other contaminants, they also can maintain a stable connection even in harsh environments.
Custom Molded Service
We can supply product design and development services. Our technical dept. can give you professional advice and solutions based on your real needs. The product can be provided by custom-molded or CNC processing.
How to Order
| KRX | 16 | X | - | 3X04 | ZJ | - | 025 | - | S | - | 01 |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ |
① Master code: KRX
② Product Series: 16
③ Position: X, Y, U ,V
④ 3Pin: 3X04--3pin, Pin/hole Diameter: Φ4
⑤ Connector Type: ZJ--Sokect mounting pin
⑥ Wire Range: 025--2.5mm², 040--4mm², 060--6mm², 100--10mm²
⑦ Shield Function: S--shield, No mark--unshielded
⑧ HVIL: 00--No HVIL, 01--Included HVIL
| KRX | 16 | X | - | 3X04 | TK | - | 025 | - | S | - | 01 |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ |
① Master code: KRX
② Product series: 16
③ Position: X, Y , U , V
④ 3Pin: 3X04--3pin, Pin/hole Diameter: Φ4
⑤ Connector Type: TK--Plug mounting hole
⑥ Wire Range: 025--2.5mm², 040--4mm², 060--6mm², 100--10mm²
⑦ Shield Function: S--shield, No mark--unshielded
⑧ HVIL: 00--No HVIL, 01--Included HVIL

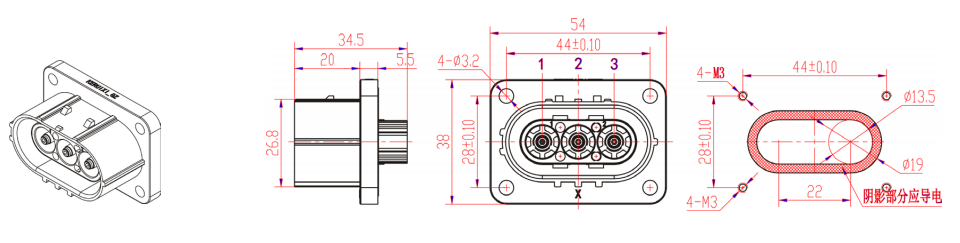

Mounting Dimensions
Product Applications
Our High-voltage connectors are used in a wide range of industries, including electric vehicles, electric boats, energy storage system, Evtol, railway transportation, etc.
DC-to-DC Converters
AC/DC Charging Station
Electric Vehicles
Motor controller
High-current battery pack
Hybrid electric vehicle
HV Power Distribution Units
PTC & Auxiliary
On-Board Charger (OBC)
Inverters
HV Wire Harness
This is not a list of definitions of applications for this product. It represents some of the more common uses.
