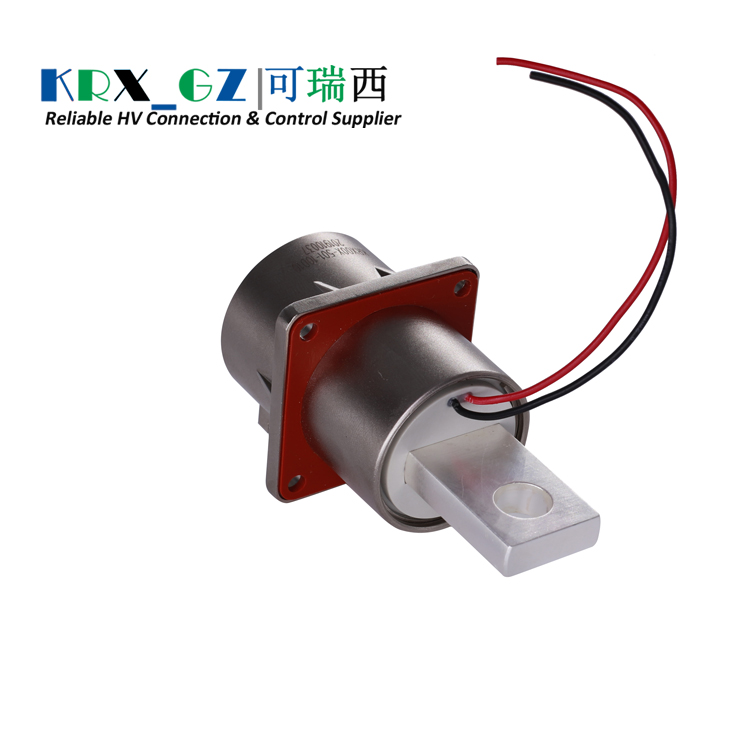

KRX500 Series High voltage connectors designed to support up to 500A at 1500V DC. They are built to endure extreme temperature ranges from -40°C to +125°C. With an IP67 waterproof rating, they offer excellent resistance to both dust and moisture. The connector is easy to install and highly reliable. It is made of high-quality materials and has excellent durability. Part No.: KRX00X-501-10M10 Position: 1 Pin WaterProof: IP67 Rated Current: 500A Rated Voltage: 1500V Shield and HVIL function: Support Wire Range: 95 mm²/120 mm²/135 mm²/150mm²


Download Center


Your one-stop destination for fast and secure access to all essential datasheets, operation instruction, product drawing and catalog of this connector. Please feel free to download the attachment.

500A Connectors  KRX18-500 Straight Plug_2D drawing

High Voltage Connectors  Product-Catalogue_V5


Gerneral Information


Connector Type:

Female Socket

Orientation:

Straight

Positions:

1 Pin

Shell Material:

Zinc Alloy

MOQ Limited:1 pcKey:X, Y, U, V, W

Rate Current:

300A/350A/400A/500A

Rated Voltage:

1500V

Mounting Type:

Terminal Crimp

Ingress Protection:

IP67

Shield:

SYesg

HVIL:

Intergrated

Salt Spray:

48 Hours

Temperature Range:

-40°C ~ 125°C

Mechanical Life:

500 Times

Insulation Resistance:

1000MΩ

Wire Range:

95 mm²/120 mm²/135 mm²/150mm²




Features & Benefits


500A Connectors

Touch-safe design


500A Connectors

Wide cable ranges



500A Connectors

IP67 Ingress Protection

500A Connectors

Multiple coding options

500A Connectors

HVlL: integrated, interna!

500A Connectors

360"shielded connection

500A Connectors

Secondary latching function

500A Connectors

No tool required to unmate

500A Connectors

Temperature sensor options

500A Connectors

Compact design & low weight

500A Connectors

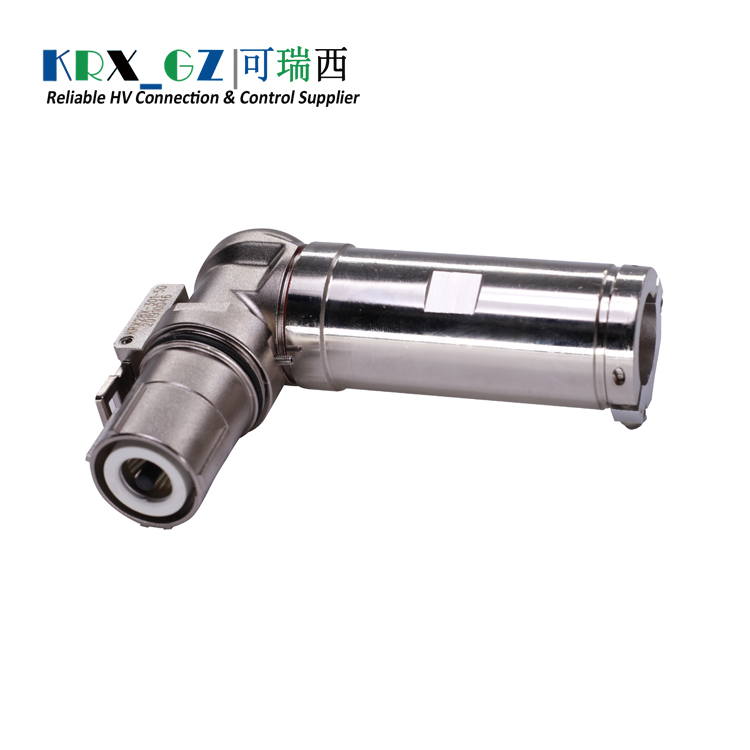

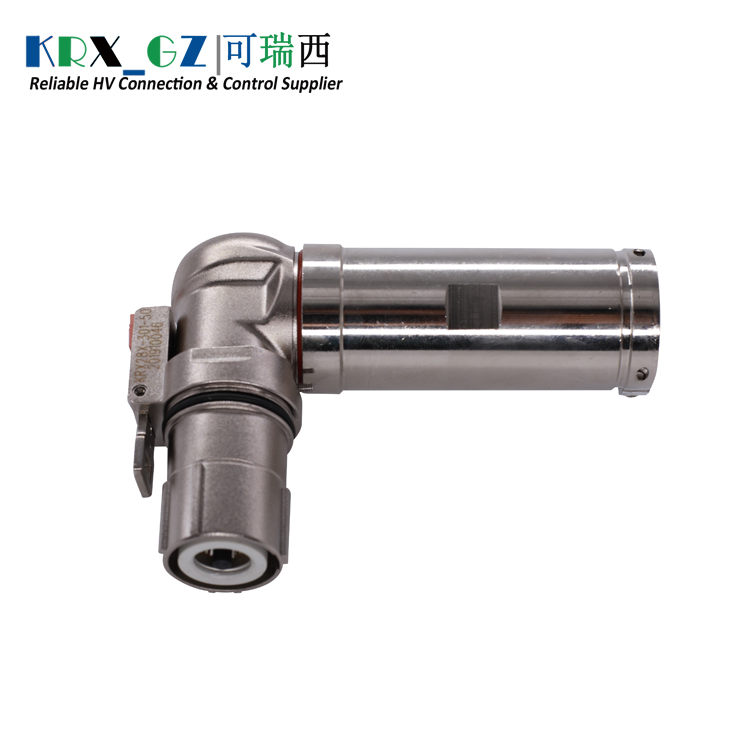

90°and 180°female plugs options

500A Connectors

Quick Lock and Press-to-Release Design

500A Connectors

High current load at high ambient temperatures


Excellent Key Technologies

Our advantage

500A Connectors

Safety Consideration

KRX's touch-safe technology is designed to protect individuals handling high-voltage connectors. In addition, greater creepage and clearance distances between conductive materials can lead to higher voltage levels.


High Voltage Connectors

Outstanding Conductivity

We utilize an advanced antioxidant treatment and meticulously choose premium raw materials to ensure our product delivers superior conductivity, enabling faster and more reliable signal transmission.


HVIL Connector

Compact & Sealing Design

We designed it to be compact, saving space with light weight. Robust sealing technologies can prevent the ingress of moisture, dust, and other contaminants, they also can maintain a stable connection even in harsh environments.


500A Connectors

Custom Molded Service

We can supply product design and development services. Our technical dept. can give you professional advice and solutions based on your real needs. The product can be provided by custom-molded or CNC processing.


How to Order


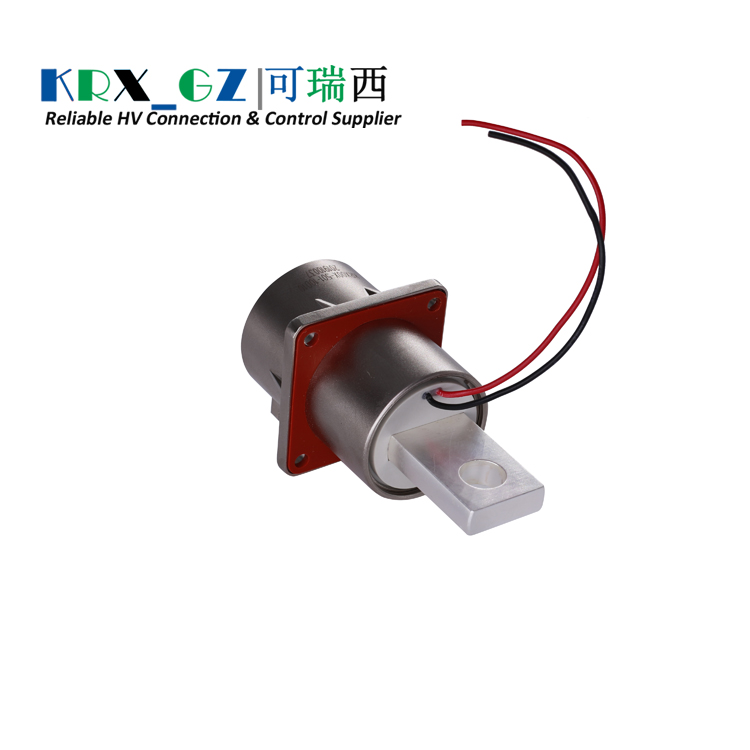

KRX00X-501-10M10-T



① Master code: KRX

② Product type: 00 is receptacle

③ Positions: X, Y , U , V , W

④ Rated current: 50--500A

⑤ HVIL: 1 is Yes, 0 is No

⑥ Copper row connection hole specification: 10D10, 10M10 ,is optional

⑦ Temperature sensor: T is Yes, No mark is No


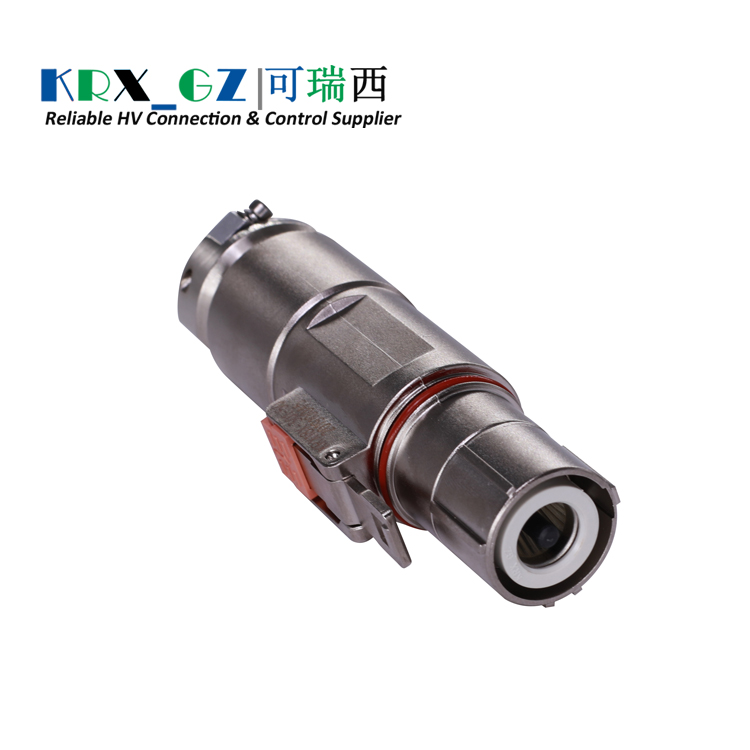

KRX18X-501-120


① Master code: KRX

② Product type: 18 is 180° straight plug, 28 is 90° plug

③ Positions:X, Y , U , V , W

④ Rated current: 50--500A

⑤ HVlL: 1 is Yes, o is No

⑥ Wire Range: 95-95mm², 120-120 mm², 135-135mm², 150-150mm²


KRX28X-501-120


① Master code: KRX

② Product type: 18 is 180° straight plug, 28 is 90° plug

③ Positions:X, Y , U , V , W

④ Rated current: 50--500A

⑤ HVlL: 1 is Yes, o is No

⑥ Wire Range: 95-95mm², 120-120 mm², 135-135mm², 150-150mm²

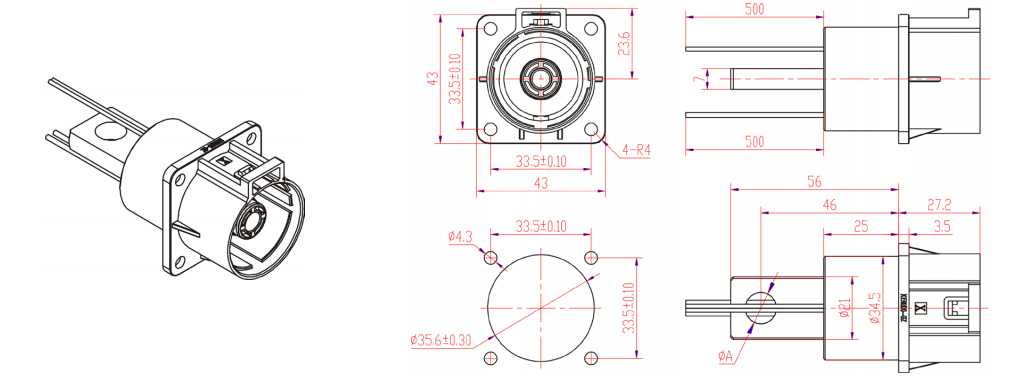

Mounting Dimensions

High Voltage Connectors

Product Applications


Our High-voltage connectors are used in a wide range of industries, including electric vehicles, electric boats, energy storage system, Evtol, railway transportation, etc.

500A Connectors

DC-to-DC Converters


500A Connectors

AC/DC Charging Station


500A Connectors

Electric Vehicles




500A Connectors

Motor controller


500A Connectors

High-current battery pack

500A Connectors

Hybrid electric vehicle


500A Connectors

HV Power Distribution Units

500A Connectors  PTC & Auxiliary
500A Connectors

On-Board Charger (OBC)

500A Connectors

Inverters

500A Connectors

HV Wire Harness

This is not a list of definitions of applications for this product. It represents some of the more common uses.
