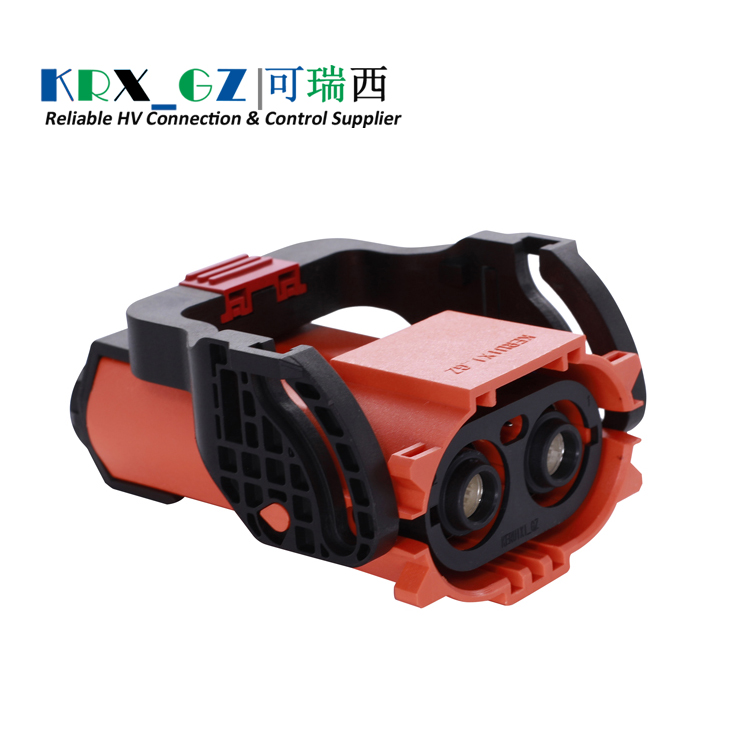

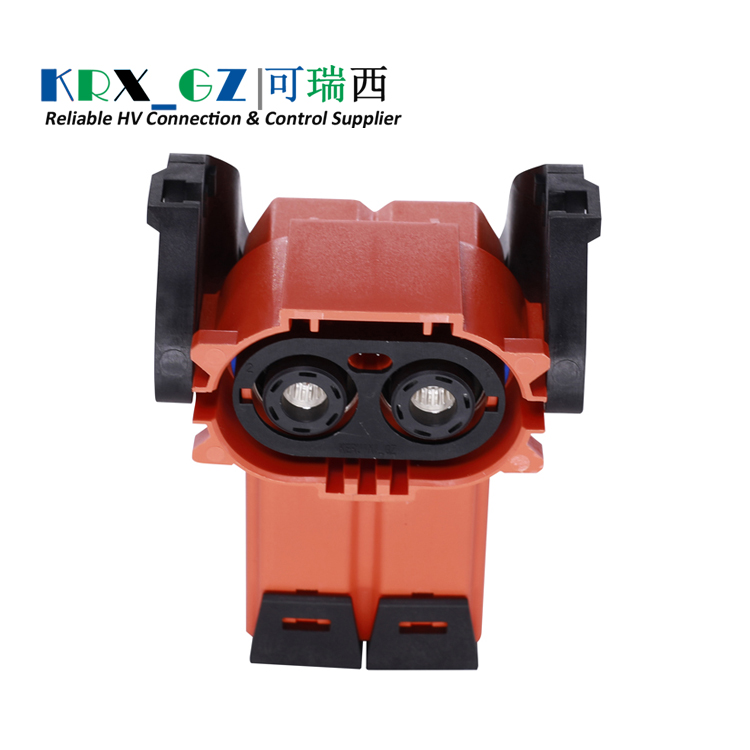

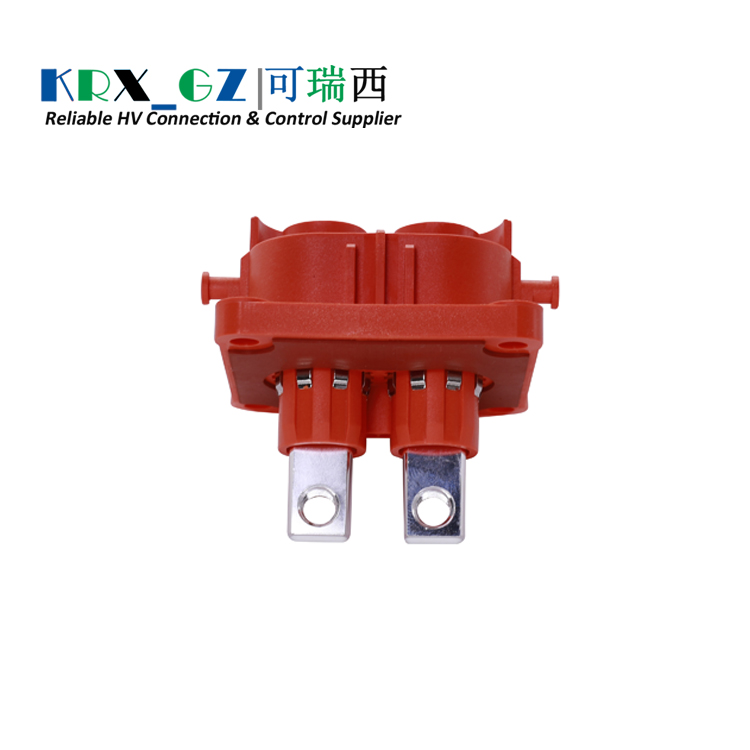

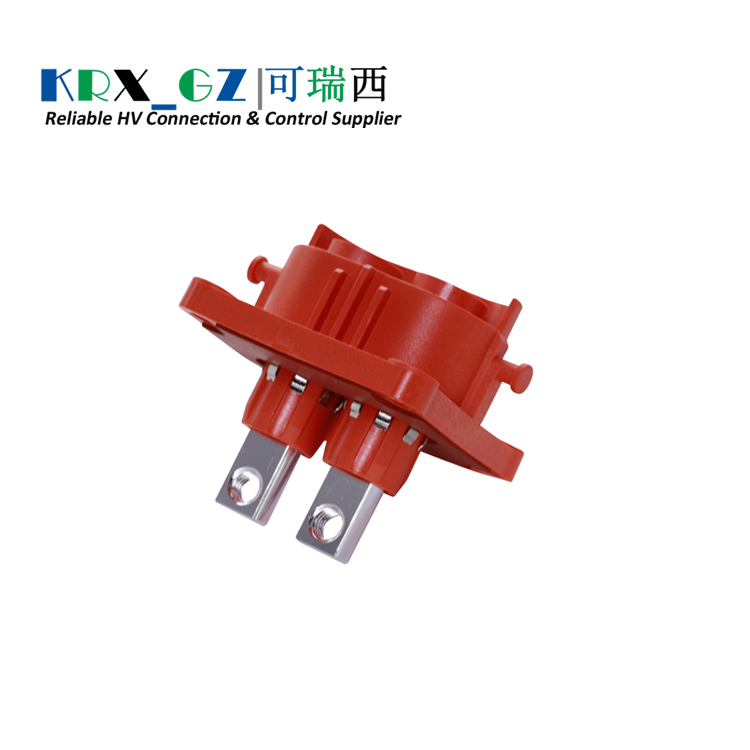

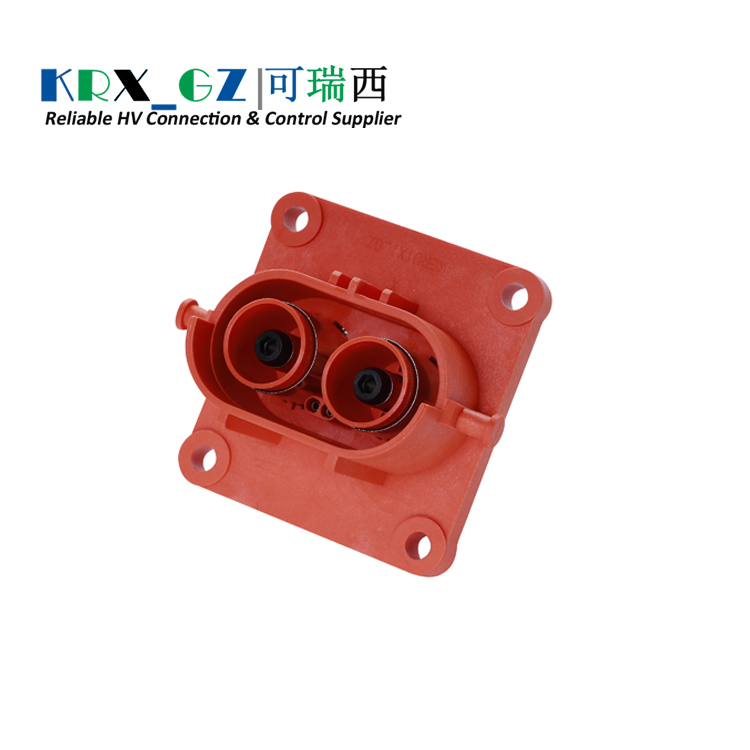

KRX18-500 Straight Plug_2D drawing
Gerneral Information
Connector Type: | Female Socket | Orientation: | Straight |
Positions: | 2 Pin | Shell Material: | Engineering Plastics |
| MOQ Limited: | 1 pc | Key: | X , Y , U |
Rate Current: | 120A/150A/200A | Rated Voltage: | 1500V |
Mounting Type: | Terminal Crimp | Ingress Protection: | IP67 |
Shield： | Yes | HVIL: | Intergrated |
Salt Spray: | 48 Hours | Temperature Range: | -40°C ~ 125°C |
Mechanical Life: | 500 Times | Insulation Resistance: | 1000MΩ |
Wire Range: | 25 mm²/35 mm²/50 mm² |
Features & Benefits
Touch-safe design
Wide cable ranges
IP67 Ingress Protection
Multiple coding options
HVIL: integrated, internal
360° shielded connection
No tool required to unmate
Compact design & low weight
Quick Lock and Press-to-Release Design
Latch locking which more convenient and fast
Secondary latching function
90°and 180° female plugs options
High current load at high ambient temperatures
Handle tightening which more convenient and faster
Excellent Key Technologies
Our advantage
Safety Consideration
KRX's touch-safe technology is designed to protect individuals handling high-voltage connectors. In addition, greater creepage and clearance distances between conductive materials can lead to higher voltage levels.
Outstanding Conductivity
We utilize an advanced antioxidant treatment and meticulously choose premium raw materials to ensure our product delivers superior conductivity, enabling faster and more reliable signal transmission.
Compact & Sealing Design
We designed it to be compact, saving space with light weight. Robust sealing technologies can prevent the ingress of moisture, dust, and other contaminants, they also can maintain a stable connection even in harsh environments.
Custom Molded Service
We can supply product design and development services. Our technical dept. can give you professional advice and solutions based on your real needs. The product can be provided by custom-molded or CNC processing.
How to Order
| KRX | 20 | X | - | 2X08 | ZJ | - | M8 | - | 01 | - | 01 | -A |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ |
① Master code: KRX
② Product Series: 20
③ Position: X, Y, U
④ 2Pin: 2X08--2pin, Pin/hole Diameter: Φ8
⑤ Connector type: ZJ-- Receptacle mounting pin
⑥ Terminal connection specification: M8-M8 screw thread
⑦ Terminal Tail code: 01--Copper row type
⑧ HVIL: 00--No HVIL, 01--Included HVIL
⑨ No mark-- Shield, A--Unshield
| KRX | 20 | X | - | 2X08 | TK | - | 00 | - | 25 | - | 01 | -A |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ |
① Master code: KRX
② Product series: 20
③ Position: X, Y , U
④ 2Pin: 2X08--2pin, Pin/hole Diameter: Φ8
⑤ Connector type: TK-- Plug mounting hole
⑥ Plug code: 00--180°Straight plug, 90--90° plug
⑦ Wire range: 25--25mm², 35--35mm², 50--50mm²
⑧ HVIL: 00--No HVIL, 01--Included HVIL
⑨ No mark-- Shield, A--Unshield
| KRX | 20 | X | - | 2X08 | TK | - | 90 | - | 25 | - | 01 | -A |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ |
① Master code: KRX
② Product series: 20
③ Position: X, Y , U
④ 2Pin: 2X08--2pin, Pin/hole Diameter: Φ8
⑤ Connector type: TK-- Plug mounting hole
⑥ Plug code: 00--180°Straight plug, 90--90° plug
⑦ Wire range: 25--25mm², 35--35mm², 50--50mm²
⑧ HVIL: 00--No HVIL, 01--Included HVIL
⑨ No mark-- Shield, A--Unshield

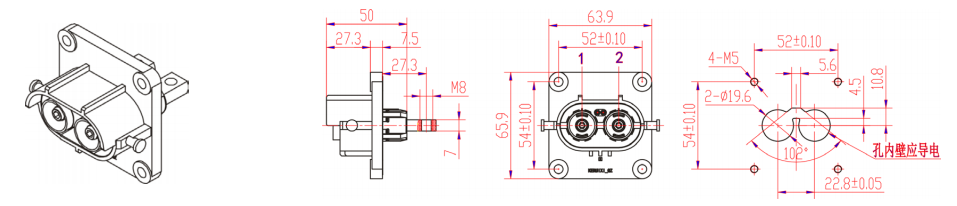

Mounting Dimensions
Product Applications
Our High-voltage connectors are used in a wide range of industries, including electric vehicles, electric boats, energy storage system, Evtol, railway transportation, etc.
