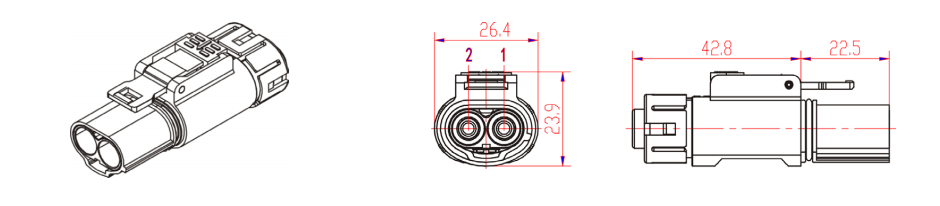

KRX18-500 Straight Plug_2D drawing

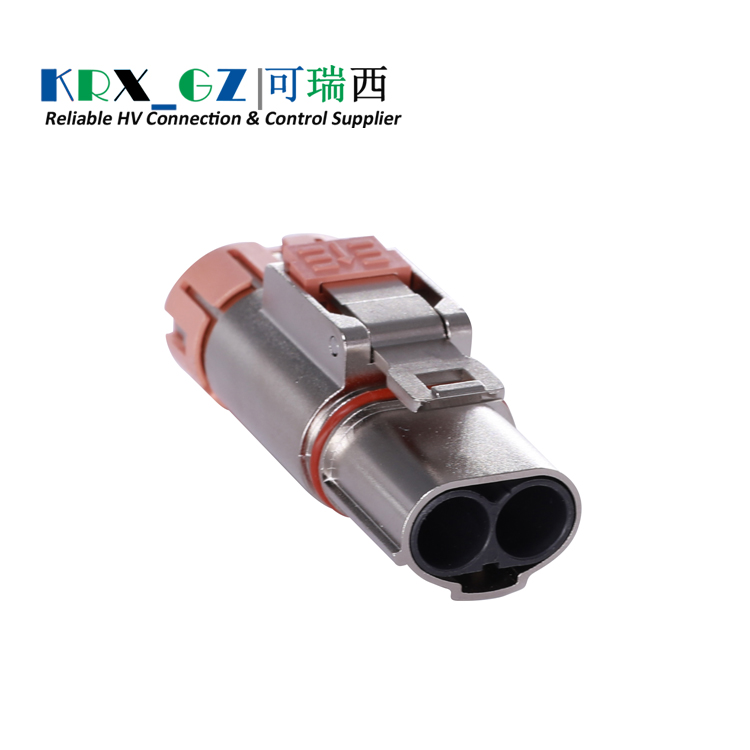

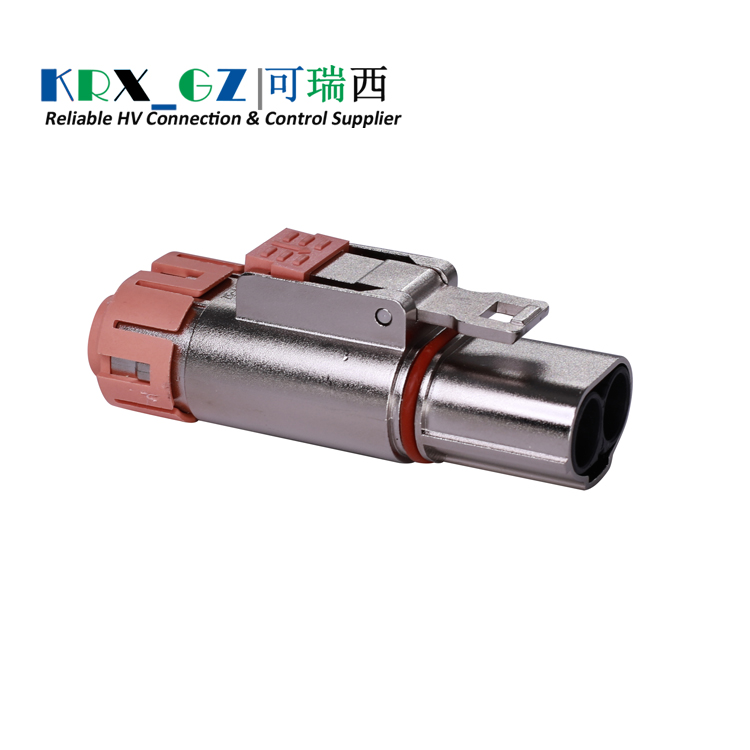

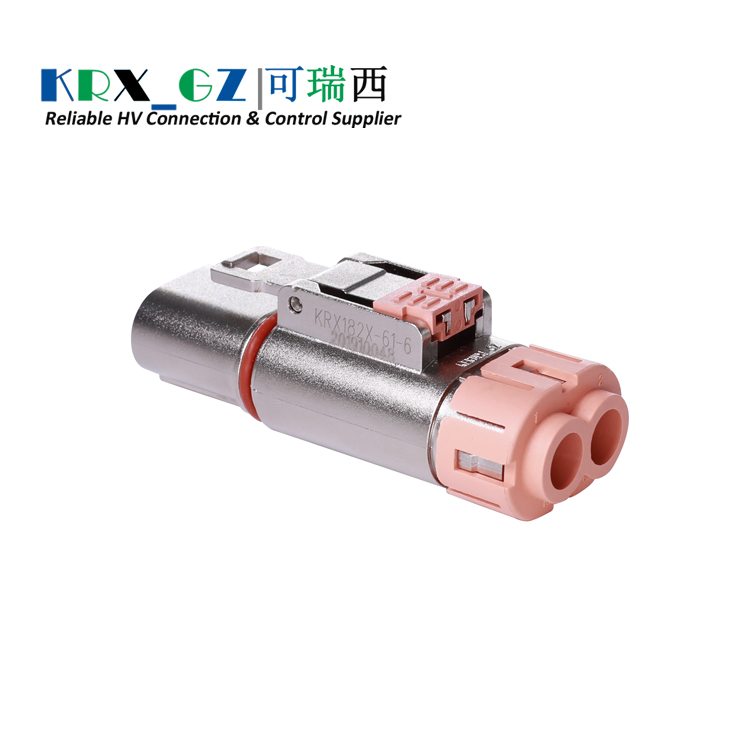

Gerneral Information
Connector Type: | Male Plug | Orientation: | Straight |
Positions: | 2 Pin | Shell Material: | Zinc Alloy |
| MOQ Limited: | 1 pc | Key: | X, Y , U |
Rate Current: | 16A/25A/35A/60A | Rated Voltage: | 1500V |
Mounting Type: | Terminal Crimp | Ingress Protection: | IP67 |
Shield： | Yes | HVIL: | Intergrated |
Salt Spray: | 48 Hours | Temperature Range: | -40°C ~ 125°C |
Mechanical Life: | 500 Times | Insulation Resistance: | 1000MΩ |
Wire Range: | 2.5 mm² /4.0 mm² /6.0 mm² /10 mm² |
Features & Benefits
Touch-safe design
Wide cable ranges
IP67 Ingress Protection
Multiple coding options
HVIL: integrated, internal
360° shielded connection
Secondary latching function
No tool required to unmate
Compact design & low weight
Quick Lock and Press-to-Release Design
High current load at high ambient temperatures
Excellent Key Technologies
Our advantage
Safety Consideration
KRX's touch-safe technology is designed to protect individuals handling high-voltage connectors. In addition, greater creepage and clearance distances between conductive materials can lead to higher voltage levels.
Outstanding Conductivity
We utilize an advanced antioxidant treatment and meticulously choose premium raw materials to ensure our product delivers superior conductivity, enabling faster and more reliable signal transmission.
Compact & Sealing Design
We designed it to be compact, saving space with light weight. Robust sealing technologies can prevent the ingress of moisture, dust, and other contaminants, they also can maintain a stable connection even in harsh environments.
Custom Molded Service
We can supply product design and development services. Our technical dept. can give you professional advice and solutions based on your real needs. The product can be provided by custom-molded or CNC processing.
How to Order
| KRX | 182 | X | - | 6 | 1 | - | 10 |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
① Master code: KRX
② Product type: 182 is shielded plug, 482 is unshielded plug
③ Position: X, Y , U
④ Rated current: 6--60A
⑤ HVIL: 1 is Yes, 0 is No
⑥ Wire Range: 2.5-2.5mm², 4-4.0mm², 6-6.0mm², 10-10.0 mm²

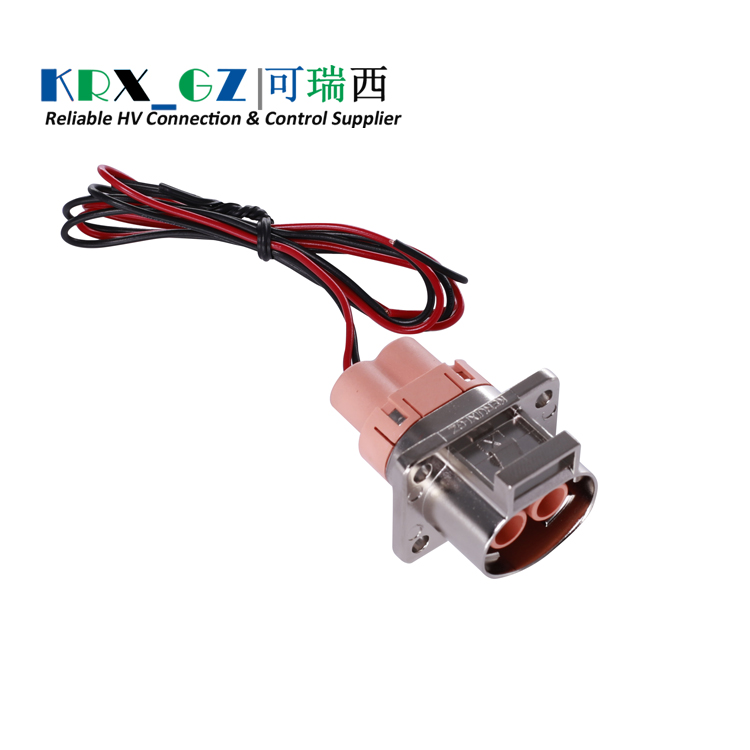

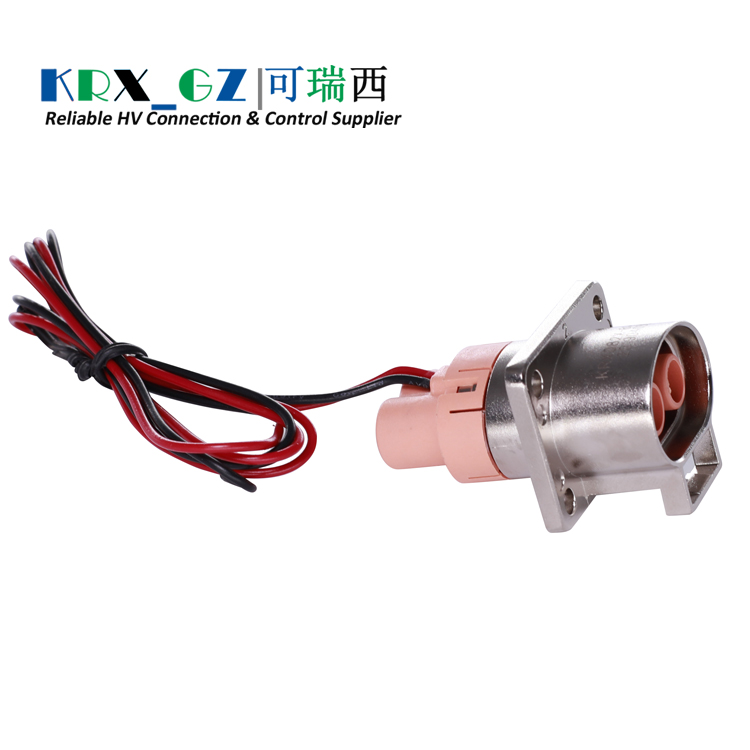

| KRX | 082 | X | - | 6 | 1 | - | 10 |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
① Master code: KRX
② Product type: 082 is receptacle
③ Position: X, Y , U
④ Rated current: 6--60A
⑤ HVIL: 1 is Yes, 0 is No
⑥ Wire Range: 2.5-2.5mm², 4-4.0mm², 6-6.0mm², 10-10.0 mm²
Mounting Dimensions
Product Applications
Our High-voltage connectors are used in a wide range of industries, including electric vehicles, electric boats, energy storage system, Evtol, railway transportation, etc.
