Your one-stop destination for fast and secure access to all essential datasheets, operation instruction, product drawing and catalog of this connector. Please feel free to download the attachment.
KRX18-500 Straight Plug_2D drawing
Gerneral Information
Connector Type: | Female Socket | Orientation: | Straight |
Positions: | 4 Pin | Shell Material: | Aluminium Alloy |
| MOQ Limited: | 1 pc | Key： | Two |
Rate Current: | 16A/25A/35A | Rated Voltage: | 1500V |
Mounting Type: | Terminal Crimp | Ingress Protection: | IP67 |
Type of Locking： | Spiral Groove Latch Locking | Contact surface： | Silver-plated |
Salt Spray: | 48 Hours | Temperature Range: | -40°C ~ 125°C |
Mechanical Life: | 500 Times | Insulation Resistance: | 1000MΩ |
Wire Range: | 2.5 mm²/4.0 mm²/6.0 mm² |
Features & Benefits
Wide cable ranges
IP67 Ingress Protection
Spiral groove latch locking
Multiple coding options
Compact design & low weight
Connectors to mate with panel mount receptacles
The contact pins are equipped with internal crown springs, and both the contact pins and crown springs are silver-plated.
Excellent Key Technologies
Our advantage
Safety Consideration
KRX's touch-safe technology is designed to protect individuals handling high-voltage connectors. In addition, greater creepage and clearance distances between conductive materials can lead to higher voltage levels.
Outstanding Conductivity
We utilize an advanced antioxidant treatment and meticulously choose premium raw materials to ensure our product delivers superior conductivity, enabling faster and more reliable signal transmission.
Compact & Sealing Design
We designed it to be compact, saving space with light weight. Robust sealing technologies can prevent the ingress of moisture, dust, and other contaminants, they also can maintain a stable connection even in harsh environments.
Custom Molded Service
We can supply product design and development services. Our technical dept. can give you professional advice and solutions based on your real needs. The product can be provided by custom-molded or CNC processing.
How to Order

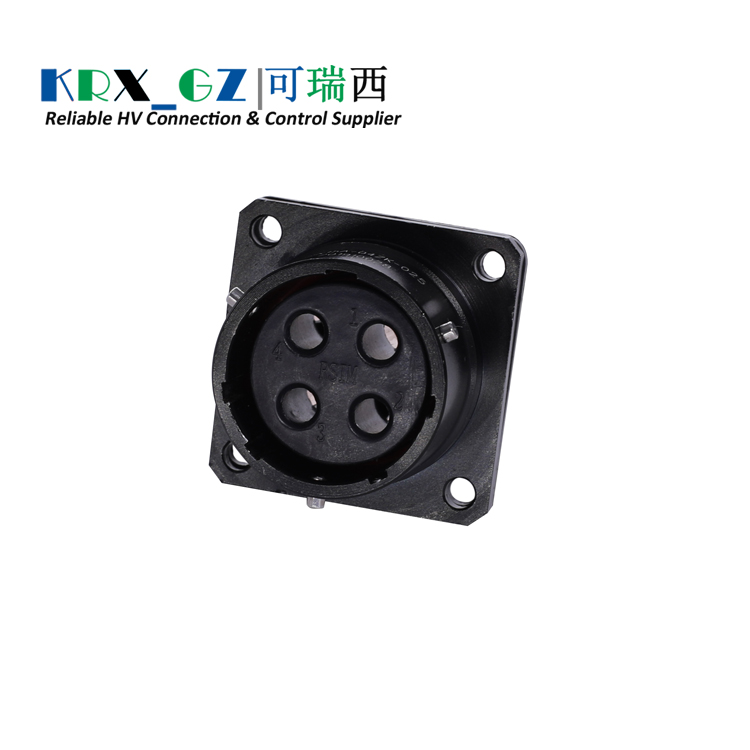

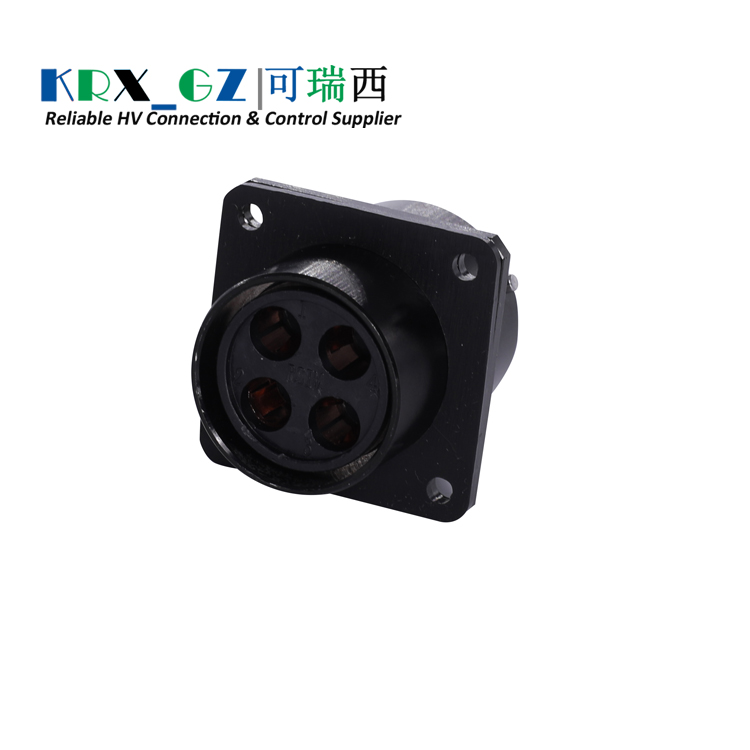

| KRX | 15A | - | 04 | ZK | - | 025 |
| ① | ② | ③ | ④ | ⑤ |

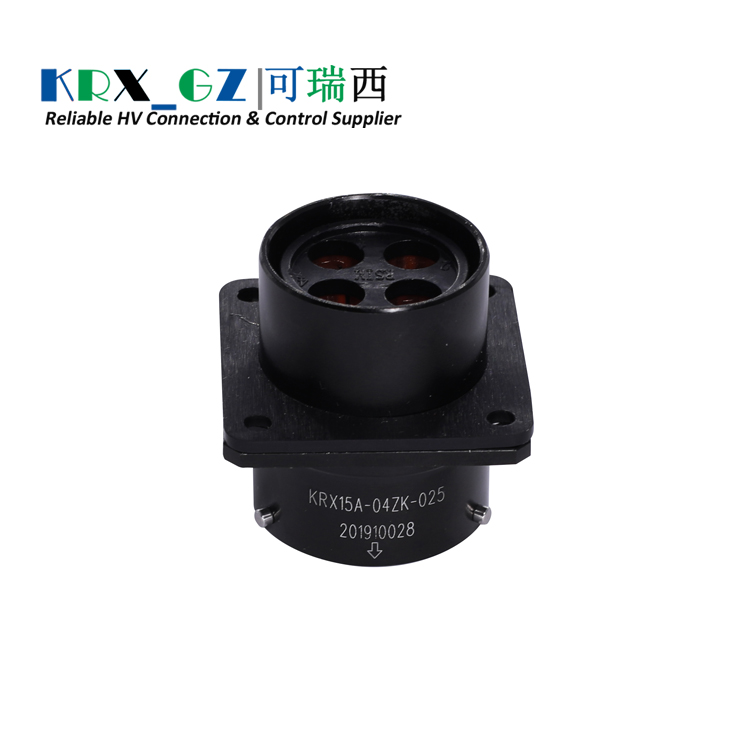

① Master code: KRX
② Product series: 15A
③ Pin size: 04--4Pin
④ Type: ZK is socket & hole, ZJ is socket & pin
⑤ Wire range: 025--2.5mm², 040--4mm², 060--6mm²

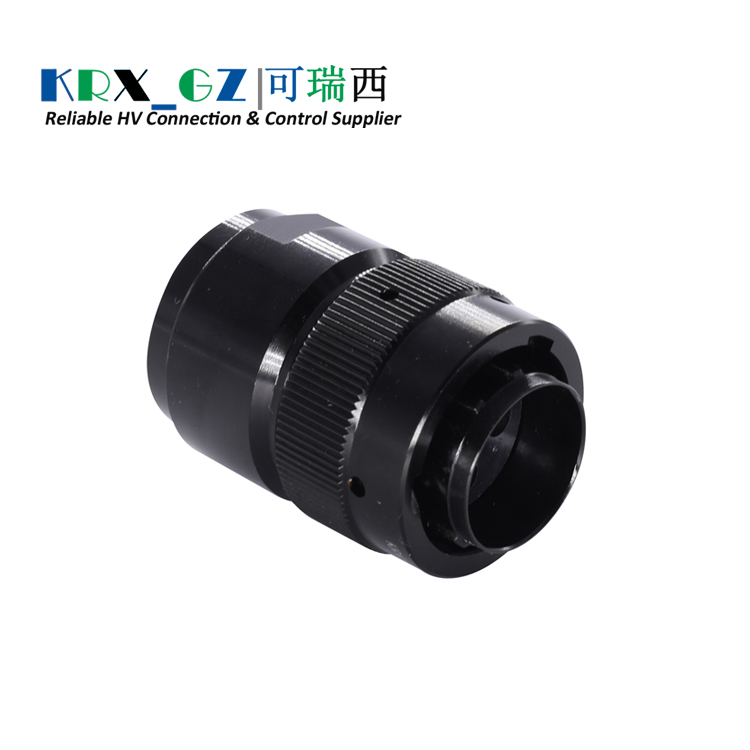

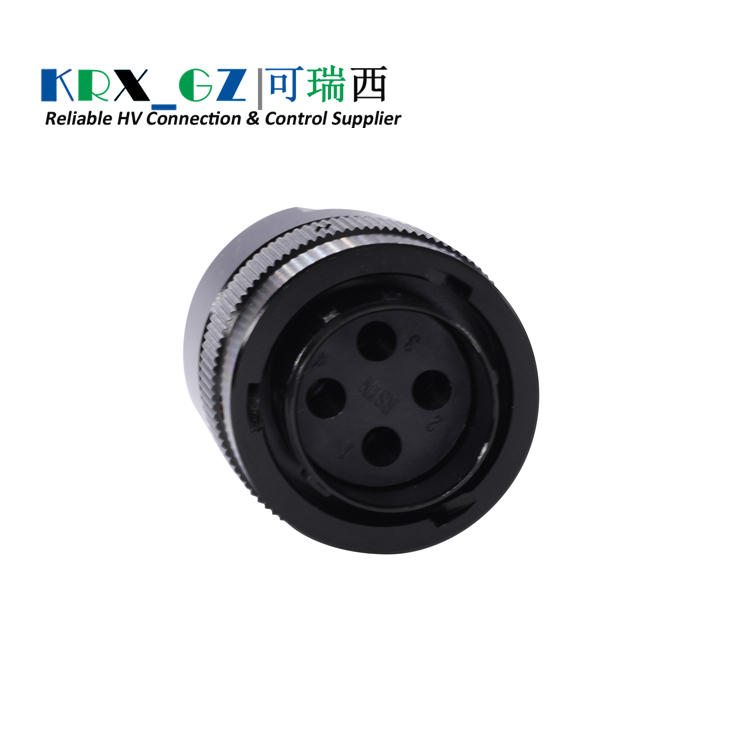

| KRX | 15 | - | 04 | TJ | - | 0100 | - | 025 |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
① Master code: KRX
② Product series: 15
③ Pin size: 04--4Pin
④ Type: TJ is plug & pin, TK is plug & hole
⑤ Plug type: 0100-Straight outgoing wire Plug
⑥ Wire range: 025--2.5mm², 040--4mm², 060--6mm²

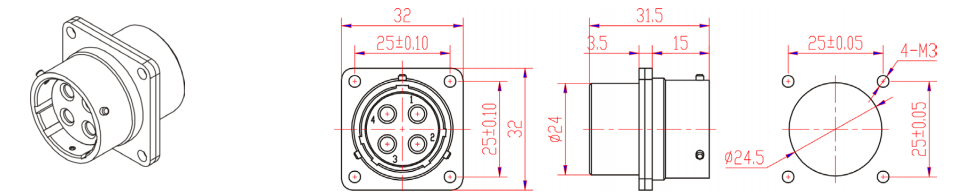

Mounting Dimensions
Product Applications
Our High-voltage connectors are used in a wide range of industries, including electric vehicles, electric boats, energy storage system, Evtol, railway transportation, etc.
DC-to-DC Converters
AC/DC Charging Station
Electric Vehicles
Motor controller
High-current battery pack
Hybrid electric vehicle
HV Power Distribution Units
PTC & Auxiliary
On-Board Charger (OBC)
Inverters
HV Wire Harness
This is not a list of definitions of applications for this product. It represents some of the more common uses.
